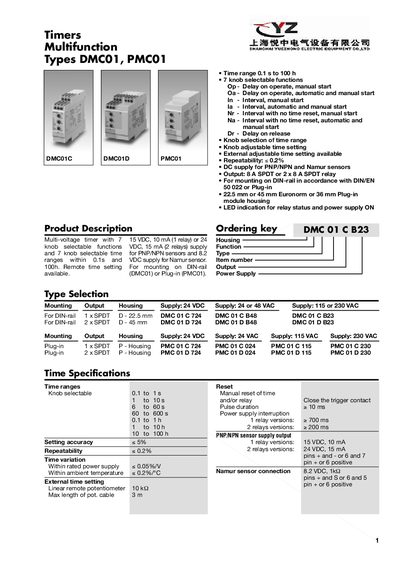

The document describes a multifunction timer with 7 knob selectable functions and 7 knob selectable time ranges. The timer operates within a time range of 0.1s to 100h and has adjustable time settings through knobs and external adjustment. It offers high repeatability and can be powered by different voltage supplies. The timer is designed for mounting on DIN-rail or plug-in, providing flexibility in installation.
The DMC01 and PMC01 timers offer seven knob‑selectable functions with time ranges from 0.1 s to 100 h and a repeatability of less than 0.2 %. They support PNP/NPN and Namur sensor inputs, external potentiometer time setting, and provide LED status indicators.
The devices can be mounted on a DIN‑rail (22.5 mm or 45 mm) or as a plug‑in module (36 mm). Power supplies are 15 VDC 10 mA for single‑relay versions or 24 VDC 15 mA for dual‑relay versions, with rated insulation voltage of 250 VAC (RMS). Wiring diagrams, operation diagrams and detailed specifications are included.
| Time range | 0.1 s to 100 h |
|---|---|
| Repeatability | < 0.2 % |
| Output | 8 A SPDT or 2 × 8 A SPDT relay |
| Power supply options | 15 VDC 10 mA (1 relay) or 24 VDC 15 mA (2 relays) |
| Rated insulation voltage | 250 VAC (RMS) |
The timer provides seven knob‑selectable functions.
The external potentiometer cable may be up to 3 m long.
Both models can be mounted on a DIN‑rail (22.5 mm or 45 mm) or used as a plug‑in module (36 mm).
The timer’s repeatability is less than 0.2 %.
