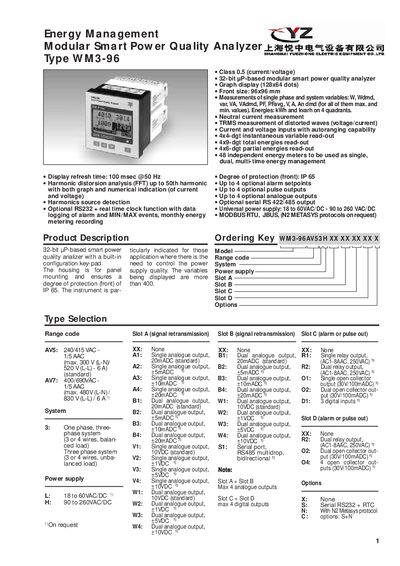

This is a smart power quality analyzer that measures single-phase and three-phase system variables (W, Wdmd, var, VA, VAdmd, PF, PFavg, V, A, An dmd). It has a graphical display, 4x4-bit instantaneous variable readout, 4x9-digit total energy readout, 4x6-digit partial energy readout, 48 independent energy meters to be used as single, dual, multi-time energy management.
The WM3-96 modular smart power quality analyzer provides comprehensive measurement of voltage, current, power, energy, and harmonic distortion for single‑phase and three‑phase systems. It features a 128×64‑dot LCD, IP65 front protection, and a universal power supply ranging from 18 VAC/DC to 260 VAC/DC.
The device supports up to four optional analog outputs, digital outputs, pulse outputs, and alarm setpoints, all programmable via RS‑422/485 or MODBUS RTU. Sampling is performed at 6400 samples/s with temperature drift under 200 ppm/°C, and data can be logged with optional RS‑232/RTC modules.
| Display refresh time | 100 msec @50 Hz |
|---|---|
| Harmonic distortion analysis | Up to 50th harmonic (FFT) |
| Front protection rating | IP65 |
| Power supply range | 18‑60 VAC/DC (optional) / 90‑260 VAC/DC (standard) |
| Sampling rate | 6400 samples/s @50 Hz |
| Temperature drift | <200 ppm/°C |
| Weight | Approx. 600 g (packing included) |
It can analyze harmonic distortion up to the 50th harmonic.
The front panel is rated IP65.
