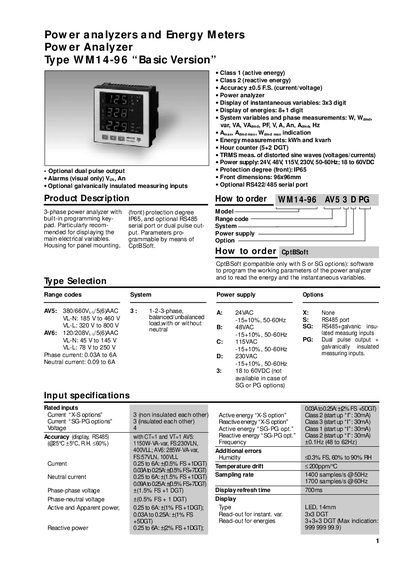

WM14-96 is a 3-phase power analyzer with built-in programming key-pad. Particularly recommended for displaying the main electrical variables. Housing for panel mounting, (front) protection degree IP65, and optional RS485 serial port or dual pulse out- put. Parameters pro- grammable by means of CptBSoft.
This manual describes the WM14-96 power analyzer (Basic Version), a 3‑phase instrument with optional dual pulse output, RS485/RS422 serial ports, and galvanically insulated measuring inputs. It includes details on the display, measurement capabilities, and environmental ratings.
The document also covers configuration software (CptBSoft), wiring diagrams, front‑panel description, and safety approvals, helping users install, program, and maintain the analyzer in industrial settings.
| Front dimensions | 96 x 96 x 63 mm |
|---|---|
| Front protection degree | IP65 |
| Display of instantaneous variables | 3 x 3 digit |
| Power supply options | 24 V, 48 V, 115 V, 230 V (50‑60 Hz) or 18‑60 VDC |
| Weight | Approx. 400 g |
The front panel has an IP65 protection degree (standard) and meets NEMA4x/NEMA12 requirements.
CptBSoft is the Windows‑based software for programming parameters and reading energy and instantaneous variables.
Energies are shown with an 8+1 digit display, while instantaneous variables use a 3x3 digit LED display.
