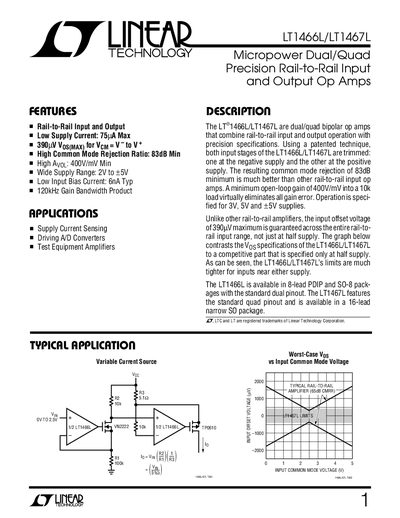

The LT1466L/LT1467L are dual/quad bipolar op amps that combine rail-to-rail input and output operation with precision specifications.
The LT1466L and LT1467L are dual‑ and quad‑channel bipolar op‑amps that provide rail‑to‑rail input and output operation with very low supply current (75 yA max) and tight offset voltage (390 µV max). They feature a high common‑mode rejection ratio of 83 dB min and a gain‑bandwidth product of 120 kHz.
Typical applications include supply‑current sensing, driving A/D converters, and test‑equipment amplifiers. The devices are offered in 8‑lead PDIP and SO‑8 packages (LT1466L) and a 16‑lead narrow SO package (LT1467L).
| Maximum Supply Voltage | 8 V |
|---|---|
| Low Supply Current | 75 yA max |
| Input Offset Voltage | 390 µV max |
| Common Mode Rejection Ratio | 83 dB min |
| Gain Bandwidth Product | 120 kHz |
| Supply Current per Amplifier | 15 pA typ |
The maximum supply voltage is 8 V.
Typical supply current per amplifier is 15 pA.
The input offset voltage is specified as 390 µV maximum.
The CMRR is at least 83 dB.
