The MAX8563/MAX8564/MAX8564A are ultra-low output voltage, dual and triple LDO controllers, widely used in the load point voltage conversion of motherboards, desktop notebooks, notebooks and other fields, flexible and cost-effective.

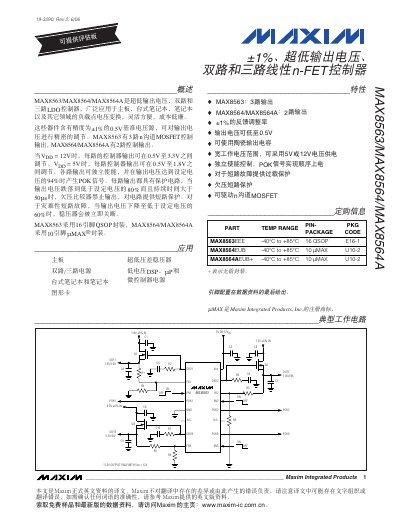

The MAX8563, MAX8564 and MAX8564A are ultra‑low‑output voltage LDO controllers designed for motherboard, desktop‑laptop and graphics‑card power‑rail applications. They provide precise 0.5 V reference and independent enable control for each output channel, with a POK status signal for power‑on sequencing.
Key features include ±1% feedback adjustment, output voltage ranges of 0.5 V‑3.3 V (12 V supply) or 0.5 V‑1.8 V (5 V supply), overload and short‑circuit protection, and operation over –40 °C to +85 °C. The devices are offered in 16‑pin QSOP (MAX8563) or 10‑pin µMAX (MAX8564/MAX8564A) packages and are supported by extensive electrical specifications and typical application circuits. This manual is written in Chinese.
| Output voltage range (VDD = 5 V) | 0.5 V – 1.8 V |
|---|---|
| Feedback accuracy | ±1 % |
| Number of output channels | MAX8563: 3, MAX8564/MAX8564A: 2 |
| Operating temperature range | -40 °C to +85 °C |
The MAX8564 provides two independent output channels.
The devices operate from –40 °C to +85 °C.
