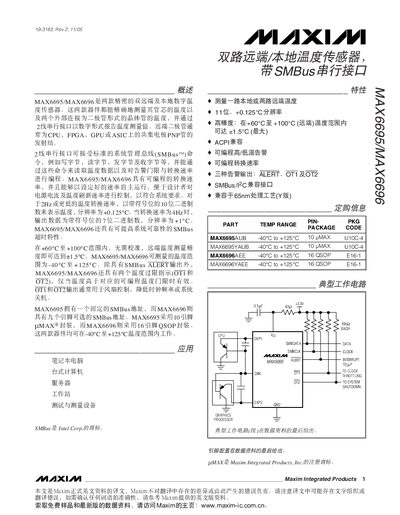

MAX6695/MAX6696 are precision dual remote and local digital temperature sensors. These devices can accurately measure temperatures and report the measurements digitally via a 2-wire serial interface. They have programmable conversion rates and alarm thresholds, making them suitable for use in laptops, desktop computers, servers, workstations, and test and measurement equipment.
The MAX6695 and MAX6696 are dual‑channel temperature‑monitoring ICs with SMBus/I²C compatible interfaces. They measure local and remote diode temperatures with 10‑bit resolution and programmable alert thresholds, suitable for CPU, FPGA, GPU or ASIC thermal management.
The document includes absolute maximum ratings, electrical characteristics, pin configurations, SMBus timing, and guidelines for using external diodes and discrete transistors as remote sensors. It also covers standby and operating current, conversion rates, and package dimensions for the 10‑pin and 16‑pin versions. This manual is written in Chinese.
| Supply Voltage (VCC) | 3.0 V – 3.6 V |
|---|---|
| Standby Supply Current | 10 µA |
| Operating Current (interface inactive, ADC active) | 0.5 mA – 1 mA |
| Alert Output Low‑Sink Current | 6 mA |
| Package (MAX6695) | 10‑pin TSSOP |
MAX6695 has a fixed SMBus address.
At the highest conversion rate (4 Hz) the resolution is 1 °C per LSB.
The standby supply current is 10 µA.
