OP193/OP293/OP493 is a single supply operational amplifier from Analog Devices. It features high precision, low supply current and the ability to operate at low voltages. The amplifier is suitable for applications such as digital scales, strain gauges, portable medical equipment, battery-powered instrumentation, and temperature transducer amplifiers.
The OP193 family of single‑supply operational amplifiers offers high precision, low supply current and operation down to 1.7 V, making them suitable for battery‑powered instrumentation and portable medical equipment. The devices are available in plastic DIP and SOIC surface‑mount packages and are specified for operation from +2 V to +18 V over a temperature range of –40 °C to +125 °C.

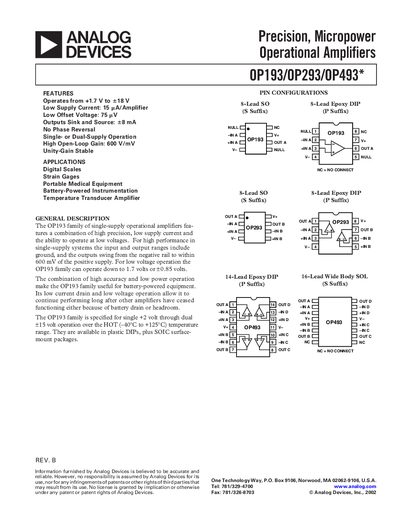

The document provides detailed electrical specifications, pin configurations, absolute maximum ratings, ordering information and typical performance graphs for the OP193, OP293 and OP493 devices.
| Supply Voltage Range | +2 V to +18 V |
|---|---|
| Input Offset Voltage (OP193, typical) | 75 µV |
| Gain Bandwidth Product | 35 kHz |
| Slew Rate | 15 V/ms |
The OP193 operates from +2 V to +18 V.
The device can sustain a short‑circuit current of up to +8 mA.
The gain‑bandwidth product is 35 kHz.
