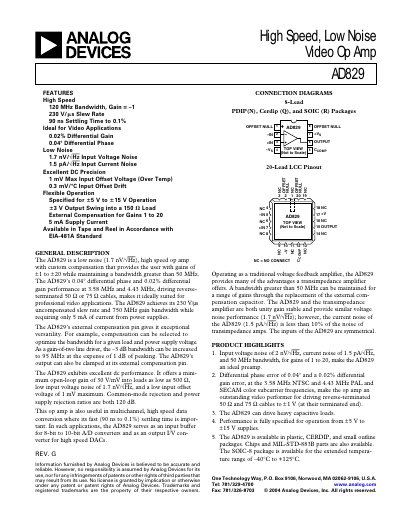

AD829 is a high speed, low noise video op amp. It features 120 MHz bandwidth, 230 V/�s slew rate and 90 ns settling time. It is ideal for video applications.
The AD829 is a low‑noise (1.7 nV/√Hz), high‑speed op‑amp with custom compensation that provides gains of ±1 to ±20 while maintaining a bandwidth greater than 50 MHz. It features a 230 V/µs uncompensated slew rate, 5 mA quiescent current, and excellent DC precision, making it suitable for professional video applications and high‑speed data conversion.
The device is offered in several plastic packages, including 8‑lead PDIP, CERDIP, SOIC and a 20‑lead LCC, with options for tape‑and‑reel delivery. It can operate from ±5 V to ±15 V (or ±4.5 V to ±18 V) supplies and drive heavy capacitive loads, while its external compensation pin allows flexible bandwidth tuning for various circuit requirements.
| Quiescent Current | 5 mA (±15 V) |
|---|---|
| Differential Gain Error | 0.02 % |
| Differential Phase Error | 0.04° |
Typical quiescent current is 5 mA when powered from ±15 V.
The AD829 is offered in 8‑lead PDIP, 8‑lead CERDIP, 8‑lead SOIC, and 20‑lead LCC packages, with tape‑and‑reel options.
