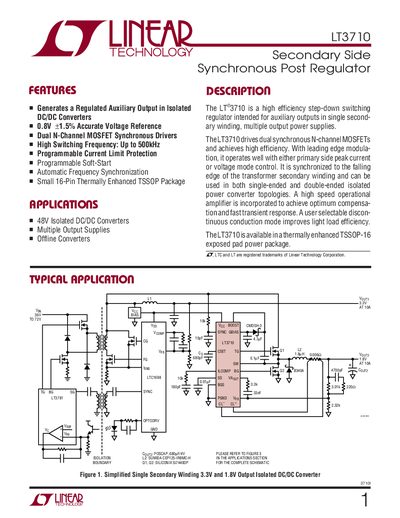

The LT ®3710 is a high efficiency step-down switching regulator intended for auxiliary outputs in single secondary winding, multiple output power supplies. The LT3710 drives dual synchronous N-channel MOSFETs and achieves high efficiency. With leading edge modulation, it operates well with either primary side peak current or voltage mode control. It is synchronized to the falling edge of the transformer secondary winding and can be used in both single-ended and double-ended isolated power converter topologies. A high speed operational amplifier is incorporated to achieve optimum compensation and fast transient response. A user selectable discontinuous conduction mode improves light load efficiency. The LT3710 is available in a thermally enhanced TSSOP-16 exposed pad power package.
The LT3710 is a high‑efficiency step‑down switching regulator designed for auxiliary outputs in isolated DC/DC converters. It features dual N‑channel MOSFET synchronous drivers, programmable current limit, soft‑start, and automatic frequency synchronization, all packaged in a 16‑lead TSSOP.
The document includes absolute maximum ratings, electrical characteristics, pin descriptions, block diagrams, and layout recommendations, as well as example application circuits and related part numbers for designers.
| Supply Voltage (Voc) | 8 V – 24 V |
|---|---|
| Switching Frequency (no SYNC) | 200 kHz typical |
| Reference Voltage (Vref) | 0.8 V |
| Package | 16‑Lead Plastic TSSOP (4.4 mm) |
| Operating Temperature Range | -40 °C to 125 °C |
The absolute maximum supply voltage is 26 V.
It is supplied in a 16‑lead TSSOP package.
The reference voltage is 0.8 V.
The SYNC pin threshold is typically 2.5 V.
