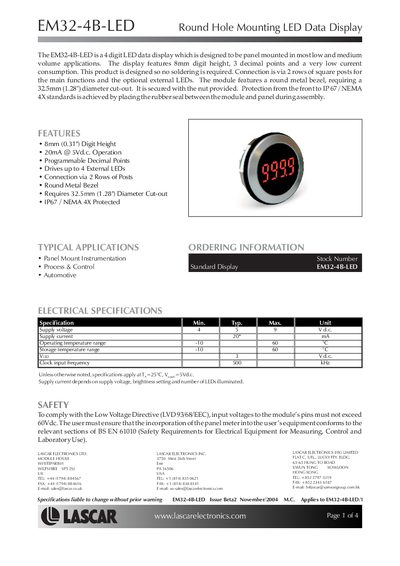

The EM32-4B-LED is a 4 digit LED data display which is designed to be panel mounted in most low and medium volume applications. The display features 8mm digit height, 3 decimal points and a very low current consumption. This product is designed so no soldering is required. Connection is via 2 rows of square posts for the main functions and the optional external LEDs. The module features a round metal bezel, requiring a 32.5mm (1.28") diameter cut-out. It is secured with the nut provided. Protection from the front to IP 67 / NEMA 4X standards is achieved by placing the rubber seal between the module and panel during assembly. FEATURES: 8mm digit height, decimal points, drives up to 4 external LEDs, metal bezel. TYPICAL APPLICATIONS: Panel mount instrumentation, process & control, automotive.
The EM32-4B-LED is a 4‑digit, panel‑mountable LED data display designed for low‑current, high‑visibility applications. It features an 8 mm digit height, programmable decimal points, and up to four external LEDs.
The manual covers safety guidelines, electrical specifications, mechanical dimensions, wiring diagrams, and timing information, helping users install, configure, and operate the module safely and correctly.
| Digit Height | 8 mm (0.31") |
|---|---|
| Supply Current | 20 mA @ 5 Vdc |
| Operating Temperature Range | -10 °C to 60 °C |
| Storage Temperature Range | -10 °C to 60 °C |
| VLD (LED Voltage) | 3 V dc |
| Clock Input Frequency | 500 kHz |
A 32.5 mm (1.28") diameter cut‑out is required.
Input voltages to the module’s pins must not exceed 60 Vdc.
The display can drive up to four external LEDs.
The module draws 20 mA at 5 Vdc.
