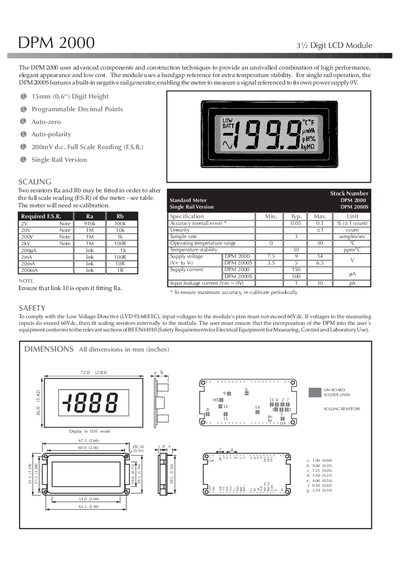

The DPM 2000 is a 3½ digit LCD module that offers a combination of high performance, elegant appearance, and low cost. The module uses a bandgap reference for extra temperature stability. The DPM2000S is a single rail version with a built-in negative rail generator, allowing the meter to measure a signal referenced to its own power supply 0V.
The DPM 2000 LCD module offers a 3½‑digit display with a 15 mm digit height and programmable decimal points. It features a band‑gap reference for temperature stability and, in the single‑rail version, an internal negative rail generator.
The document details scaling resistor options, pin assignments, safety limits (max 60 V on pins), operating temperature range, and various operating modes. Special notes cover annunciator handling and on‑board link configuration for different measurement applications.
| Digit Height | 15 mm (0.6 in) |
|---|---|
| Programmable Decimal Points | Yes |
| Full Scale Reading | 200 mV d.c. |
| Single Rail Version | Available |
| Accuracy (overall error) | 0.05 % ± 0.1 % (+1 count) |
| Linearity | +1 count |
| Sample Rate | 3 samples/sec |
| Operating Temperature Range | 0 °C to 50 °C |
| Temperature Stability | 30 ppm/°C |
| Input Leakage Current | 1 – 10 pA |
Input voltages to the module’s pins must not exceed 60 V.
The module operates from 0 °C to 50 °C.
Apply a solder blob to the backplane pads located between the annunciator input pads.
