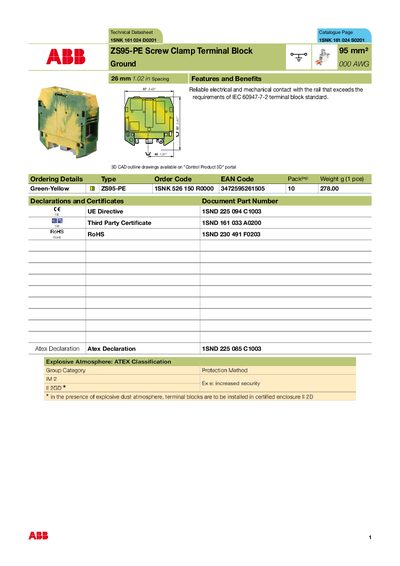

This product is ZS95-PE screw clamp terminal block, the maximum connection cable cross section is 95 mm², the maximum connection wire cross section is 000 AWG, and it is equipped with green-yellow insulating tube.
The ABB ZS95-PE is a screw‑clamp terminal block designed for reliable electrical and mechanical contact on a DIN rail. It complies with IEC 60947‑7‑2 and offers a 95 mm spacing with a ground connection, suitable for both rigid and flexible conductors.
The datasheet provides detailed specifications such as a rated short‑time withstand current of 11 400 A, torque requirement of 9.25 Nm, IP10/NEMA 7 protection, and extensive environmental test results (temperature range –55 °C to +110 °C, humidity, vibration, and corrosion). Ordering codes, accessories, and certification references (RoHS, ATEX, UL94) are also listed.
| Rated short‑time withstand current (1 s) | 11 400 A |
|---|---|
| Torque for screw clamp | 9.25 Nm |
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| IP protection class | IP10 |
| Operating temperature (storage) | -55 °C to +110 °C |
The terminal block can withstand a short‑time current of 11 400 A for 1 second.
A torque of 9.25 Nm (approximately 81.7 in‑lb) is recommended.
The terminal block has an IP10 rating and a NEMA 7 rating.
