ZS6-D1 is a double deck screw clamp terminal block from Schneider Electric with a capacity of 6 mm² 10 AWG and a spacing of 6 mm 0.236 in.

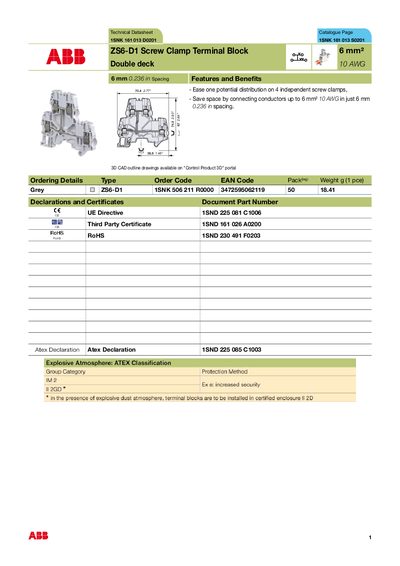

The ZS6-D1 is a double‑deck screw clamp terminal block with 6 mm (0.236 in) spacing, designed for compact wiring of conductors up to 6 mm (24‑10 AWG). It features independent screw clamps, a polyamide insulating material, and complies with IEC 60947‑7‑1 standards.
The document provides electrical characteristics such as a rated current of 40 A, short‑time withstand current of 720 A (1 s), IP20 protection, and operating torque of 0.85 Nm. Environmental test data, ATEX classification, and a full list of compatible accessories and ordering details are also included.
| Rated current | 40 A |
|---|---|
| Short‑time withstand current (1 s) | 720 A |
| IP protection | IP20 |
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| Operating torque | 0.85 Nm |
| Storage temperature range | -55 °C to +110 °C |
| Wire stripping length | >10 mm |
The ZS6-D1 is rated for a continuous current of 40 A according to IEC 60947‑7‑1.
It can withstand a short‑circuit current of 720 A for 1 second.
Accessories include end stops, end sections, jumper bars, test adapters, test connectors, spacers, shield connectors, tools (PS‑3), markers, and various other parts listed with order codes.
