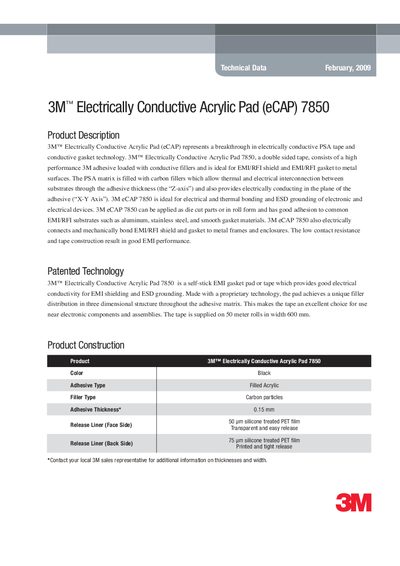

3M™ Electrically Conductive Acrylic Pad 7850 is a self-stick EMI gasket pad or tape which provides good electrical conductivity for EMI shielding and ESD grounding.
The 3M 7850 Electrically Conductive Acrylic Pad (eCAP) is a double‑sided, carbon‑filled acrylic tape designed for EMI/RFI shielding and ESD grounding. It can be supplied as die‑cut parts or on 50 m rolls (600 mm wide) and adheres well to metal and gasket substrates.
The sheet provides typical electrical and mechanical properties, such as Z‑axis resistance of 0.50 Ω per square inch and a thermal impedance of 0.07 °C·in²/W, as well as certifications including RoHS, TSCA exemption, and compliance with EU directives.
| Adhesive Thickness | 0.15 mm |
|---|---|
| Roll Length / Width | 50 m length, 600 mm width |
| Z‑axis Resistance | 0.50 (1 in × 1 in) |
| Z‑axis Thermal Impedance | 0.07 °C·in²/W |
| Surface Electrical Resistance | 1009/0 |
| 90° Peel Adhesion (Front Side) | 1500 gf/inch |
| 90° Peel Adhesion (Back Side) | 1500 gf/inch |
| Compression Stress (2 G) | 14 kg/sq.in |
The adhesive layer is 0.15 mm thick.
It is supplied on 50 meter rolls with a width of 600 mm.
Yes, the product complies with the EU RoHS directive.
Yes, it is defined as an article under TSCA and is exempt.
