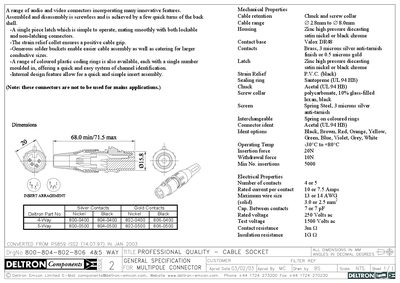

Deltron 800-0400 series 4-Way and 800-0500 series 5-Way are a range of audio and video connectors incorporating many innovative features. Assembly and disassembly is screwless and is achieved by a few quick turns of the back shell. - A single piece latch which is simple to operate, mating smoothly with both lockable and non-latching connectors. - Compact design, compatible with a variety of connectors. - Sturdy zinc alloy high pressure diecast housing. - Easy to install and disassemble. - 3 microns silver anti-tarnish coating or 0.5 microns gold contacts. - Black and nickel finish options.
Deltron's Nickel Black series provides audio and video connectors with innovative features such as screwless assembly, a single‑piece latch, and a strain‑relief collet for secure cable grip. A range of coloured plastic coding rings with molded numbers enables quick channel identification, and generous solder buckets accommodate larger conductors.
The connectors are built from materials like zinc high‑pressure die‑casting with satin nickel or black chrome finish, and feature silver or gold contacts. Mechanical specifications include dimensions of 68.0 mm min/71.5 mm max, operating temperatures from –30 °C to +80 °C, insertion force of 20 N and withdrawal force of 10 N. Electrical ratings cover 10 or 7.5 A per contact, 250 V ac rated voltage, 1500 V ac test voltage, and a capacitance between contacts of 7 pF.
| Dimensions (mm) | 68.0 min / 71.5 max |
|---|---|
| Operating Temperature | -30 °C to +80 °C |
| Rated Current per Contact | 10 or 7.5 A |
| Rated Voltage | 250 V ac |
| Test Voltage | 1500 V ac |
| Capacitance Between Contacts | 7 pF |
No, the connectors are not to be used for mains applications.
Assembly is screwless and achieved by a few quick turns of the back shell.
Coloured plastic coding rings with a single molded number are available for quick channel identification.
Each contact is rated for 10 or 7.5 amps.
