The product is an audio and video connector with many innovative features. It can be assembled and disassembled without screws, and it can be achieved by turning the back shell a few times.
The Deltron 8000 Series provides a range of audio and video connectors with innovative screwless assembly that requires only a few turns of the back shell. Available in satin nickel or matte black finishes, the contacts are silver or gold plated, and a strain‑relief collet ensures a positive cable grip. Colour‑coded plastic rings with molded numbers allow quick channel identification.

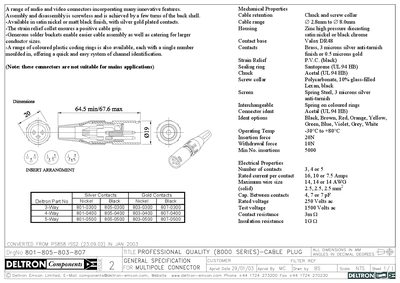

The sheet lists mechanical dimensions (64.5 min/67.6 max mm), operating temperature (‑30 °C to +80 °C), insertion and withdrawal forces (20 N / 10 N), and a minimum of 5 000 insertions. Electrical data include 3, 4 or 5 contacts, rated current per contact (16 A, 10 A or 7.5 A), rated voltage 250 V ac, test voltage 1500 V ac, contact resistance 3 mΩ, insulation resistance 1 GΩ, and capacitance between contacts 4‑7 pF.
| Dimensions (mm) | 64.5 min / 67.6 max |
|---|---|
| Operating Temperature | -30 °C to +80 °C |
| Rated Current per Contact | 16 A, 10 A or 7.5 A |
| Rated Voltage | 250 V ac |
| Test Voltage | 1500 V ac |
| Capacitance Between Contacts | 4‑7 pF |
| Finish Options | Satin nickel or matte black, silver or gold plated contacts |
| Cable Retention | Strain‑relief collet ensures positive grip |
The connectors are offered in satin nickel or matte black finishes with either silver‑plated or gold‑plated contacts.
The connectors can operate from –30 °C up to +80 °C.
Each contact is rated for 16 A, 10 A or 7.5 A depending on the connector configuration.
