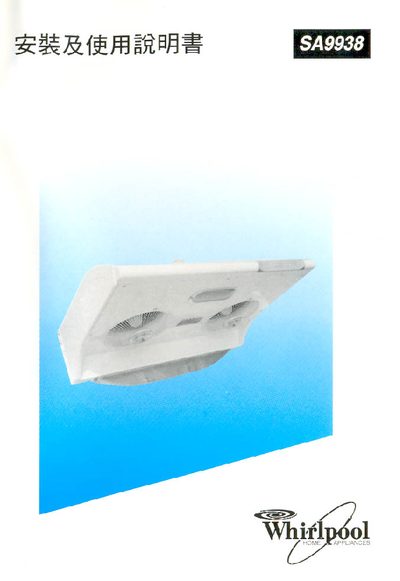

This manual provides step‑by‑step instructions for installing the Whirlpool SA9938 range hood. It details positioning requirements, recommended mounting heights, and how to secure the hood to walls or cabinets. Safety notes emphasize that installation must be performed by qualified personnel and that the unit must be connected to a proper 220‑240 V power source.
The guide also explains ducting options (7‑inch preferred, 6‑inch with adapter), operation controls, the automatic cleaning cycle, and regular maintenance procedures such as cleaning the fan, oil cup, and interior components. Technical specifications and after‑sales service contacts are listed at the end of the document. This manual is written in Chinese.
| Net Weight | 5.157 kg |
|---|---|
| Gross Weight | 19.1 kg |
| Dimensions (mm) | 537 × 200 × 894 |
| Electrical Supply | 220 V‑240 V, 50 Hz |
| Lighting System Power | 60 W |
| Motor Power | 160 W |
| Duct Outlet Pipe Diameter | 175 mm |
Always disconnect the unit from the power source before cleaning and avoid using abrasive cleaners.
