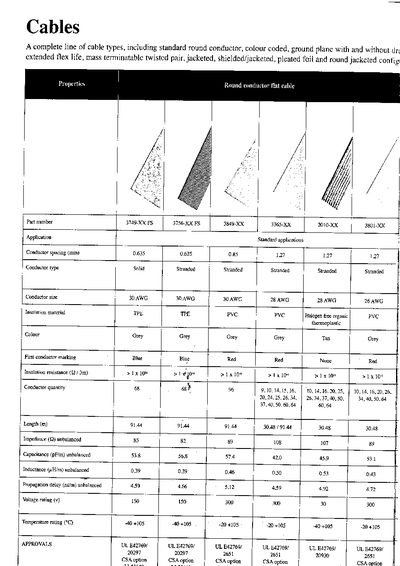

This leaflet presents a complete line of 3M cables, covering round conductor, colour‑coded, ground‑plane, twisted‑pair, jacketed and shielded configurations. It lists part numbers, typical applications and key electrical properties for each cable type.
Technical data such as conductor size, insulation material, voltage and temperature ratings, impedance, capacitance, inductance and propagation delay are provided, together with UL and CSA approval references.
| Conductor size | 30 AWG to 26 AWG |
|---|---|
| Insulation material | TPE, PYC, PVC, halogen‑free organic PVC, thermoplastic |
| Voltage rating | 150 V – 300 V |
| Capacitance (pF/m) | 42.0 – 574 pF/m (unbalanced) |
| Propagation delay (ns/m) | 3.12 – 4.92 ns/m (unbalanced) |
| Approvals | UL FA2769, UL F42769, UL E42769, CSA options |
The listed cables are rated for 150 V or 300 V, with one type rated at 30 V.
Conductor sizes range from 30 AWG to 26 AWG depending on the part number.
