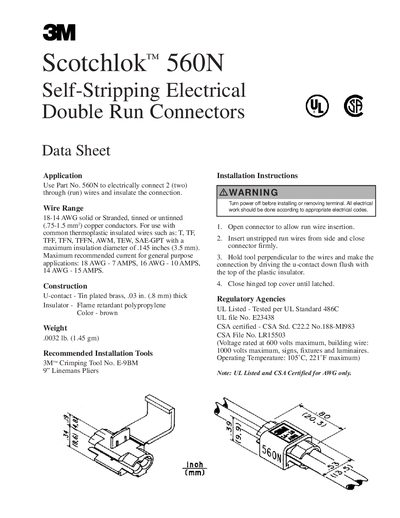

Scotchlok™ 560N Self-Stripping Electrical Double Run Connectors
The Scotchlok™ 560N is a self‑stripping electrical double‑run connector designed to join two wires ranging from 18‑14 AWG, solid or stranded, with a maximum insulation diameter of 0.145 inches. It is suitable for general‑purpose applications and includes recommended installation tools such as the 3M Crimping Tool No. E‑9BM.
The sheet lists detailed specifications, including wire range, current ratings, construction materials, weight, voltage and temperature limits, and regulatory certifications (UL Listed and CSA Certified). Installation instructions emphasize safety, proper wire insertion, and correct crimping technique, while warranty and liability notices are also provided.
| Wire range | 18‑14 AWG solid or stranded, tinned or untinned copper conductors |
|---|---|
| Maximum current (18 AWG) | 7 A |
| Maximum current (16 AWG) | 10 A |
| Maximum current (14 AWG) | 15 A |
| Insulator material | Flame retardant polypropylene |
| Color | Brown |
| Weight | 0.032 lb (1.45 g) |
| Voltage rating | 600 V (building wire 1000 V) |
| Maximum operating temperature | 105 °C (221 °F) |
| UL certification | UL Listed per UL Standard 486C |
| CSA certification | CSA Std. C22.2 No.188‑M1983 |
| Recommended crimping tool | 3M Crimping Tool No. E‑9BM |
It accepts 18‑14 AWG solid or stranded copper conductors, either tinned or untinned.
The connector can carry up to 15 amps with a 14 AWG wire.
