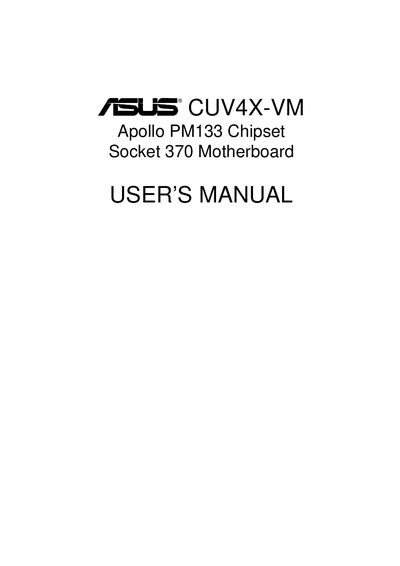

This manual introduces the functions and usage of ASUS CUV4X-VM motherboard.
This manual covers everything needed to install and configure the ASUS CUV4X-VM motherboard, including hardware setup, BIOS configuration, and software installation. It also contains safety notices, FCC compliance information, and an index for quick reference.
Key sections describe the supported processors, memory limits, expansion slots, I/O ports, and special features such as Wake‑On‑LAN and PC Health Monitoring. Detailed step‑by‑step procedures help users assemble the system, install the operating system, and use the bundled ASUS PC Probe utilities.
| Supported Processors | Intel Pentium II 100/133 MHz FSB, Intel Celeron 100/66 MHz FSB |
|---|---|
| Chipset | VIA Apollo ProSavage PM133 (VT8605 North Bridge, VT82C686B South Bridge) |
| Maximum Memory | Up to 1 GB using two PC133/100 SDRAM DIMM sockets |
| USB Ports | Four USB ports |
| PCI Expansion Slots | Three 32‑bit PCI (Rev. 2.2) slots |
It supports Intel Pentium II processors at 100/133 MHz and Intel Celeron processors at 100/66 MHz.
The board can hold up to 1 GB of memory using two unbuffered PC133/100 SDRAM DIMM modules.
Four USB ports are built into the motherboard.
It uses the VIA Apollo ProSavage PM133 chipset, with VT8605 as the North Bridge and VT82C686B as the South Bridge.
