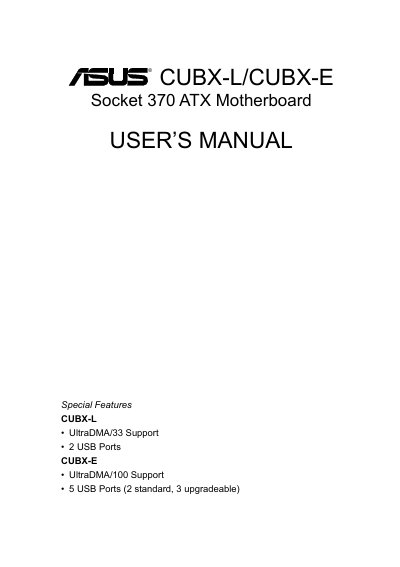

This manual introduces the features and characteristics of the ASUS CUBX-L/CUBX-E motherboard, including UltraDMA/33/100 support, 2/5 USB ports, etc.
This manual covers the ASUS CUBX-L and CUBX-E ATX motherboards. It includes safety notices, warranty information, and contact details for ASUS support worldwide. The document is organized into sections that guide users through hardware installation, BIOS configuration, and software setup.
Key sections include Features, Hardware Setup, BIOS Setup, Software Setup, Software Reference, and an Appendix with optional items such as the PCI‑L101 Ethernet card and intrusion‑detection module. FCC and Canadian compliance statements are also provided.
| UltraDMA support (CUBX-L) | UltraDMA/33 |
|---|---|
| UltraDMA support (CUBX-E) | UltraDMA/100 |
| USB ports (CUBX-E) | 5 (2 standard, 3 upgradeable) |
| Supported CPUs | Intel Pentium II 100 MHz FSB, Intel Celeron 66 MHz FSB (Coppermine and Mendocino) |
It supports Intel Pentium II 100 MHz FSB Coppermine core, Intel Celeron 66 MHz FSB Coppermine core, and Intel Celeron 66 MHz FSB Mendocino PPGA.
The CUBX‑E provides five USB ports – two standard and three upgradeable.
The device complies with the Class B digital device limits of FCC Part 15.
