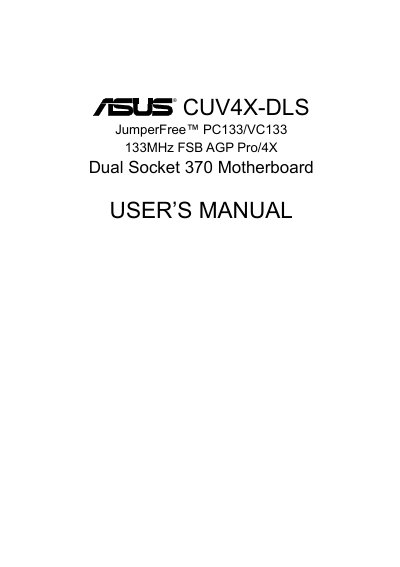

This document is the user manual for ASUS CUV4X-DLS JumperFree™ PC133/VC133 133MHz FSB AGP Pro/4X Dual Socket 370 Motherboard. The manual describes the features and characteristics of the product.
This manual covers the ASUS CUV4X-DLS motherboard, a dual‑socket 370 board aimed at home PCs and entry‑level workstations. It includes sections on introduction, features, hardware setup, BIOS setup, software setup, software reference, and an appendix with optional items.
The document provides detailed specifications, step‑by‑step installation procedures for CPU, memory, expansion cards, and peripherals, as well as FCC and regulatory compliance information.
| Processor Support | Intel Pentium® II 133 MHz FSB Coppermine core FC‑PGA, Intel Pentium® II 100 MHz FSB Coppermine core FC‑PGA |
|---|---|
| North Bridge Chipset | VIA VT82C694XDP system controller PCI‑to‑ISA bridge, 133/100 MHz FSB, 133 MHz memory bus |
| South Bridge Chipset | VIA VT82C686B PCIset with PCI Super I/O, UltraDMA/100/66, USB controller for four ports |
| Memory Support | Four DIMM sockets, up to 4 GB using PC133, VC133 or HSDRAM modules |
It supports Intel Pentium® II processors with 133 MHz or 100 MHz front‑side bus, using the Coppermine core FC‑PGA package.
The board includes a USB controller with a root hub that provides four USB ports.
It accepts PC133, VC133, and high‑speed DRAM (HSDRAM) DIMM modules, up to four slots for a total of 4 GB.
