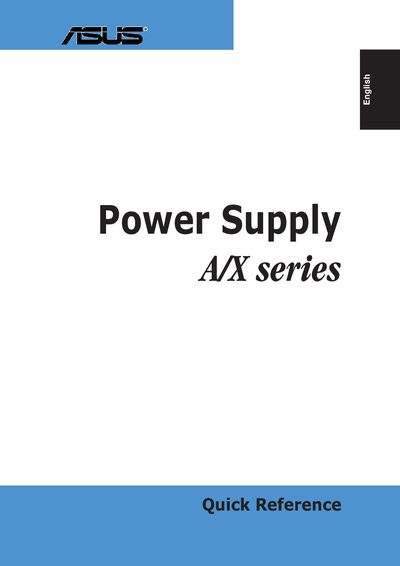

This document is the quick reference manual for ASUS power supply A/X series, which introduces the features and characteristics of ASUS power supply, package contents, installation steps and other information.
The ASUS A/X Series power supply provides heat‑management and noise‑reduction technologies, along with over‑power, over‑voltage, short‑circuit and over‑current protections. The manual includes package contents, installation steps, connector descriptions, and troubleshooting guidance.
Key sections cover selecting the correct input voltage, mounting the unit, wiring the ATX, +12V, auxiliary, peripheral, floppy, SATA and PCI‑Express connectors, and safety precautions to avoid fire or electric shock.
| +12V1DC nominal voltage | 15.0 V |
|---|---|
| +12V2DC nominal voltage | 15.0 V |
| +5VDC nominal voltage | 6.3 V |
| +3.3VDC nominal voltage | 4.2 V |
