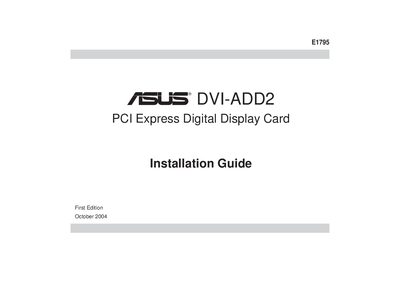

DVI-ADD2 is a PCI Express digital display card from ASUS that supports DVI output.
The ASUS DVI-ADD2 is a PCI Express digital display card designed for Intel Pentium 4 systems with the 915G chipset, offering DVI output for LCD monitors and projectors. It supports dual‑screen operation with an onboard VGA and a maximum resolution of 1600×1200 at 75 Hz.
The guide details the required system specifications, step‑by‑step installation procedures, and safety precautions. It also lists the package contents, card layout, and contact information for technical support.
| Maximum resolution | 1600x1200 at 75 Hz |
|---|---|
| Output bandwidth | 25 to 165 megapixels per second |
| Display controller | Silicon Image Sil1362 TMDS™ PanelLink® |
| DVI output port | 24‑pin DVI‑D |
| Dual‑screen support | Onboard VGA |
| PCI Express slot | x16 |
| Minimum system memory | 64 MB |
| Supported operating systems | Windows 98 SE/ME/2000/XP |
You need an Intel Pentium 4 system with a 915G chipset, at least 64 MB of memory, a PCI Express x16 slot, and Windows 98 SE/ME/2000/XP.
Turn off the computer, remove the cover, locate the PCI Express x16 slot, remove the rear bracket, insert the card, secure it with the screw, replace the cover, and connect the display to the DVI‑D port.
The card supports resolutions up to 1600×1200 at a 75 Hz refresh rate, as well as various lower modes such as VGA 640×480 and UXGA 1400×1050.
Yes, it can drive a dual‑screen setup using the onboard VGA connector together with the DVI‑D output.
