Vaisala WMT700 Quick Reference Guide

This document is a quick reference guide for Vaisala WINDCAP® Ultrasonic Wind Sensor Series WMT700, which introduces the sensor's overview, installation, calibration and other contents

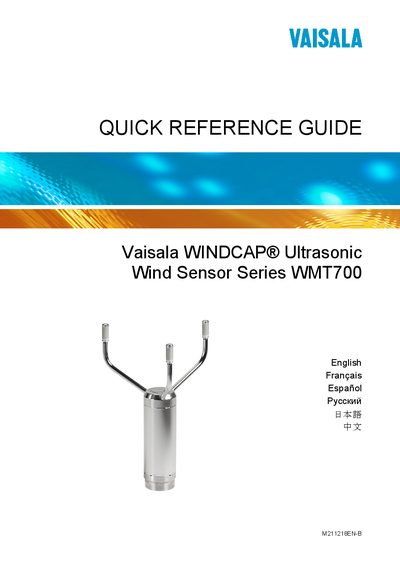

Vaisala WMT700 Quick Reference Guide - cover page
Brand
Vaisala
Category
Other
Document type
Quick Start Guide
Language
English
Pages
36
File format
PDF
File size
1.3 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
E87A10BD497FDB66517FC0984E6E591C

About this manual

The Quick Reference Guide provides essential information for installing the Vaisala WMT700 wind sensor with the FIX70 mounting kit. It covers unpacking, site selection, mounting options, alignment, power requirements and wiring details.

Key sections include instructions for removing the transportation damper, aligning the sensor northward, selecting a representative measurement location, and connecting the 17‑pin M23 connector for power, heating and analog outputs.

What's inside

  • Overview
  • Unpacking Instructions
  • Selecting Location for Representative Measurements
  • Mounting
  • Powering
  • Wiring
  • Alignment

Specifications

Power supply voltage range9 … 36 V
Analog output AOUT1Wind Speed (White‑Green)
Connector type17‑pin M23

Frequently asked questions

What voltage range can be used to power the WMT700?

The sensor can be powered from any general supply between 9 V and 36 V.

When should the transportation damper be removed?

Remove the damper protecting the array before switching on the power supply.

Which pins provide the analog wind speed and direction signals?

Analog Output AOUT1 (Wind Speed) is on pin 1 (White‑Green) and Analog Output AOUT2 (Wind Direction) is on pin 2 (Brown).
