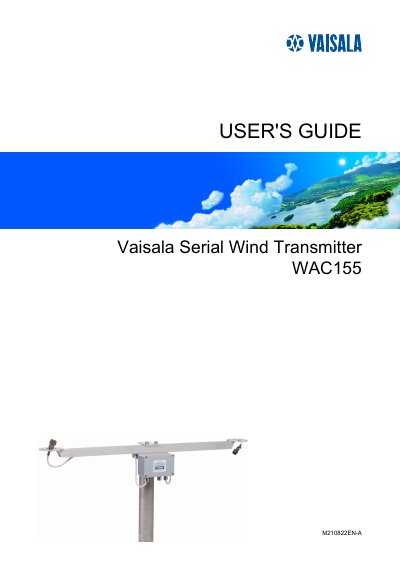

This manual introduces the functions and use of the Vaisala Serial Wind Transmitter WAC155.
This guide covers the Vaisala Serial Wind Transmitter WAC155, including safety considerations, product overview, and detailed installation instructions such as location selection, wiring, and mounting on pole masts. It also describes the user interface, communication interfaces, and serial command set for operating the device.
Additional sections address routine maintenance, troubleshooting procedures, error codes, and a full set of technical specifications, including dimensions, power requirements, and connector pinouts. Contact information for Vaisala service centers and warranty details are also provided.
| Dimensions | 887 mm (34.93 in) |
|---|---|
| Power supply voltage | 12 VDC |
| Heating power supply voltage | 20 V or 40 V |
Mount the WAC155 to the top of a pole mast as described in Chapter 3, "Mounting WAC155 to the Top of a Pole Mast".
Refer to the table "WAC155 Default Serial Communication Settings" in Chapter 3 for the default parameters.
The device can be powered with a 12 VDC supply, and heating power can be supplied with either 20 V or 40 V power supplies.
