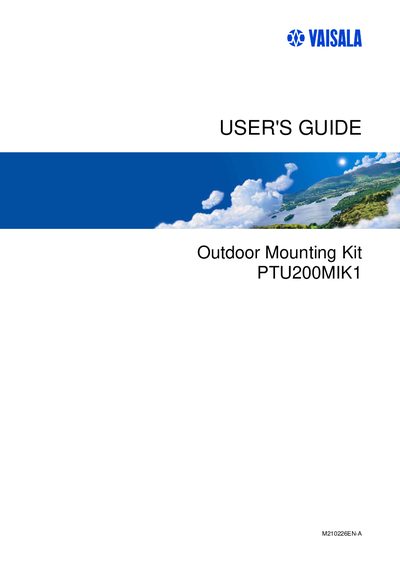

This manual introduces the features and installation methods of the PTU200MIK1 outdoor mounting kit
The PTU200MIK1 Outdoor Mounting Kit is designed for the outdoor installation of the PTU200 transmitter and humidity probes (HMP45, HMP233, HMP243). The kit includes a protective IP65 transmitter box, support arms, a radiation shield, a static pressure head, pole attachment clamps, a pressure pipe, and a pressure hose, allowing attachment to poles of 2" (≈60 mm) diameter.
The guide details safety symbols, warranty terms, and step‑by‑step installation procedures, including mounting the clamp, attaching the radiation shield, routing the pressure hose, and securing the static pressure head. It also covers tripod installation for temporary setups.
| Supported pole diameter | 2 inches (≈60 mm) |
|---|---|
| Box protection rating | IP65 |
Warning denotes a serious hazard that could result in injury or death if not correctly performed.
Vaisala provides a one‑year guarantee from the date of delivery under normal operating conditions.
The kit can be attached to poles with a diameter of either 2 inches or 60 mm.
