SPH10 pressure intake is used to measure atmospheric pressure, it can effectively eliminate the influence of wind, improve measurement accuracy. SPH10 can be directly connected to Vaisala PTB210 barometer, it can also be connected to other barometers through pipes.

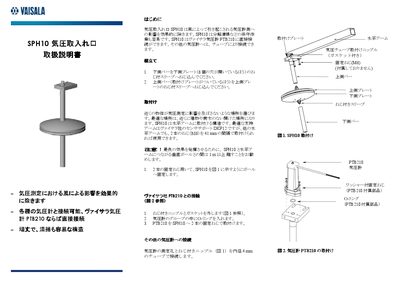

The SPH10 pressure inlet reduces wind influence on barometric measurements and can be directly connected to the Vaisala PTB210 pressure meter or to other meters via tubing. The manual explains how to assemble the unit, attach it to a horizontal arm, and select an open location free of nearby structures.
Installation steps cover fastening the lower and upper bars, connecting the PTB210 with a threaded nipple, gasket and O‑ring, and alternative connections for other pressure meters. Maintenance instructions detail how to disassemble the lower plate and bar for cleaning, then re‑assemble the unit. This manual is written in Japanese.
| Mass | 800 g |
|---|---|
| Hose connection | 4 mm inner diameter, compatible with Takeno‑ko fitting or Rp1/4 thread |
| Operating temperature range | -60 °C to +80 °C |
The SPH10 and the vertical pole should be at least 1 m apart.
Vaisala guarantees the material and assembly performance for one year from the shipment date under normal operating conditions.
