Vaisala model SPH10 Pressure Head is a device that effectively eliminates wind disturbances in pressure measurements. It can be directly integrated with the Vaisala PTB210 barometer and can be connected to other barometers using pressure tubing. The SPH10 is durable and easy to clean.

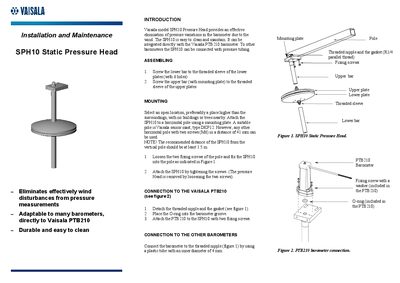

The SPH10 static pressure head eliminates wind‑induced pressure variations for barometers such as the Vaisala PTB210 and can be integrated with other barometers via pressure tubing. The guide explains how to assemble the head, mount it on a pole, and connect it to the PTB210 or other barometers.
Key sections cover assembling the lower and upper bars, selecting a suitable mounting location, detailed connection steps for the PTB210 and alternative barometers, technical data (materials, weight, temperature range), guarantee information, and cleaning/maintenance procedures.
| Plate material | Polycarbonate |
|---|---|
| Bar material | Offshore Aluminium |
| Mounting bolts | 2 bolts (M6 x minimum 20 mm) |
| Weight | 800 g |
| Hose connection | Barbed fitting for 4 mm or 1/4" thread |
| Operating temperature range | -60 °C to +80 °C |
The recommended distance is at least 1.5 m.
The SPH10 weighs 800 g.
It operates from –60 °C up to +80 °C.
