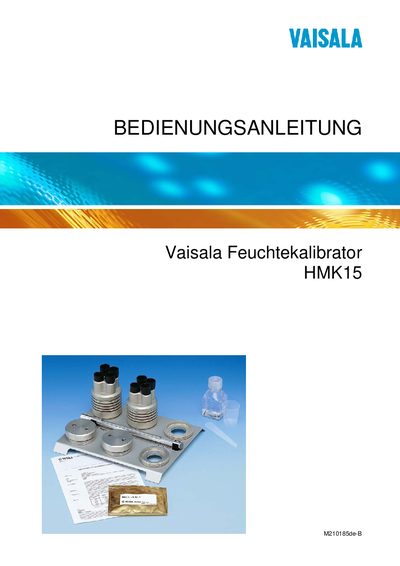

This manual describes the use of the Vaisala HMK15 Humidity Calibrator, including the description of the calibrator, preparation of salt solutions, calibration of humidity meters and on-site and transport calibrations.
The HMK15 is a humidity calibrator used to calibrate and check humidity sensors and transmitters. It creates a defined relative humidity in a sealed chamber using specific salt solutions. The device includes interchangeable caps for sensor diameters of 12 mm, 13.5 mm (two openings) and 18.5 mm, and optional transport accessories such as a transport lid and a vertical‑position transport bag.
The manual explains how to prepare the required salt solutions (LiCl, MgCl₂, NaCl, K₂SO₄), perform calibrations at two reference humidities, conduct routine maintenance, and replace accessories. Warranty information covering a 12‑month material guarantee and a 6‑month service guarantee is also included. This manual is written in German.
| Reference humidity – Lithium chloride (LiCl) | ≈ 11 %rF |
|---|---|
| Reference humidity – Magnesium chloride (MgCl₂) | ≈ 33 %rF |
| Reference humidity – Sodium chloride (NaCl) | ≈ 75 %rF |
| Reference humidity – Potassium sulfate (K₂SO₄) | ≈ 97 %rF |
| Calibration humidity range | 0 %rF – 100 %rF |
The device can calibrate sensors over the full range of 0 %rF to 100 %rF.
