The GMW20 series converter is a product that uses completely new sensor technology. The CARBOCAP sensor on the silicon substrate has excellent stability and repeatability. The high performance of the GMW20 series converter makes it an ideal product for ventilation control and other applications.

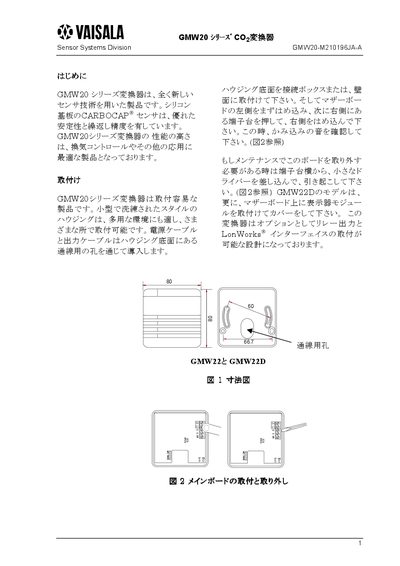

This manual describes the GMW20 series CO converter, a compact sensor device using CARBOCAPW technology for high stability and repeatability. It covers installation steps, electrical wiring, and optional features such as relay output and LonWorks interface.
The document also includes service and maintenance recommendations, calibration guidelines, technical specifications, and safety warnings. Power requirements, output options, and environmental limits are detailed for proper operation. This manual is written in Japanese.
| Measurement range | 0‑2000 ppm CO, 0‑5 000 ppm CO₂, 0‑10 000 ppm CO₂, 0‑20 000 ppm CO |
|---|---|
| Power supply | Nominal 24 VDC/24 VAC (18‑30 VDC range) |
| Maximum current draw | 85 mA (peak 170 mA) |
| Dimensions | 80 mm × 80 mm × 85 mm |
| Operating temperature range | -20 °C to +70 °C |
Calibration is recommended every year for typical operating environments.
The unit requires a nominal 24 VDC or 24 VAC supply, with an acceptable range of 18‑30 VDC.
