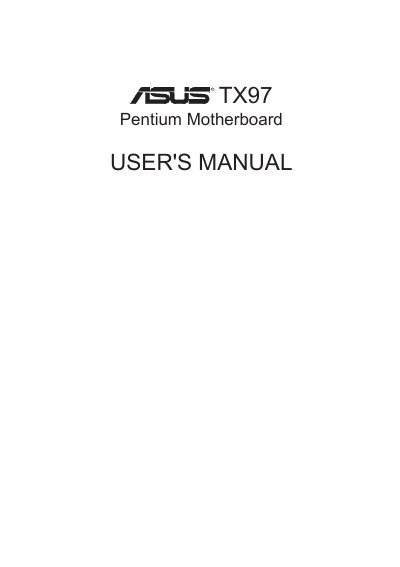

ASUS TX97 User's Manual contains information on product usage, specifications, installation guides, etc.
This manual covers the ASUS TX97 motherboard, a compact ATX board designed for Intel, Cyrix, and AMD processors. It includes a checklist, feature overview, installation steps, BIOS configuration, and support software information.
The document also details optional components such as MediaBus, SCSI cards, and power‑adapter options, and provides FCC and Canadian compliance statements for safe operation.
| Chipset | Intel 430TX |
|---|---|
| Supported CPUs | Intel Pentium 75‑200 MHz, Cyrix PL66+, AMD‑K5 PR75‑133 MHz |
| ISA slots | Three 16‑bit ISA slots |
| PCI slots | Three 32‑bit PCI slots + one shared PCI/MediaBus/ISA slot |
| Serial ports | Two high‑speed UART compatible serial ports |
| Parallel port | One parallel port with EPP/ECP |
| Level‑2 Cache | 512 KB pipelined burst SRAM |
| Power supply | ATX power supply (optional ATX‑to‑AT adapter) |
It supports Intel Pentium 75‑200 MHz, Cyrix PL66+, and AMD‑K5 PR75‑133 MHz processors.
The board provides three 16‑bit ISA slots, three 32‑bit PCI slots, and one shared PCI/MediaBus/ISA slot.
It includes a 512 KB Level‑2 cache implemented as pipelined burst SRAM.
The motherboard supports a standard ATX power supply and can use an optional ATX‑to‑AT adapter for AT supplies.
