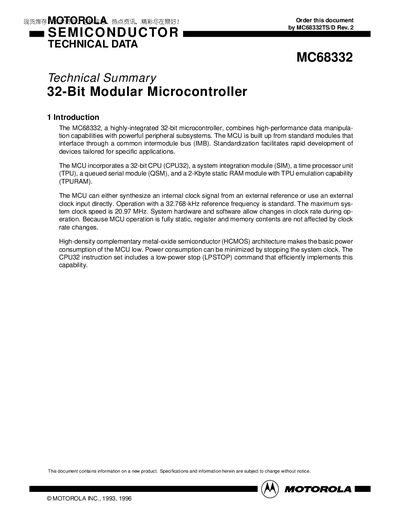

The MC68332 is a highly-integrated 32-bit microcontroller that combines high-performance data manipulation capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications. The MCU incorporates a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit (TPU), a queued serial module (QSM), and a 2-Kbyte static RAM module with TPU emulation capability (TPURAM). The MCU can either synthesize an internal clock signal from an external reference or use an external clock input directly. Operation with a 32.768-kHz reference frequency is standard. The maximum system clock speed is 20.97 MHz. System hardware and software allow changes in clock rate during operation. Because MCU operation is fully static, register and memory contents are not affected by clock rate changes. High-density complementary metal-oxide semiconductor (HCMOS) architecture makes the basic power consumption of the MCU low. Power consumption can be minimized by stopping the system clock.
The MC68332 is a highly integrated 32‑bit microcontroller that combines a CPU32 core, System Integration Module (SIM), Time Processor Unit (TPU), Queued Serial Module (QSM) and a 2‑Kbyte static RAM module with TPU emulation capability. It supports internal or external clock sources, with a standard 32.768 kHz reference and a maximum system clock speed of 20.97 MHz. The device is built from standard modules that communicate over a common intermodule bus, enabling rapid development of custom applications.
The datasheet lists multiple package options (132‑pin PQFP, 144‑pin QFP) and temperature ranges from –40 °C up to +125 °C, with frequency options of 16 MHz or 20 MHz. Detailed pin assignments, block diagrams, and module descriptions are provided, along with ordering information for each package and TPU type.
| CPU Architecture | 32‑bit |
|---|---|
| Maximum System Clock Speed | 20.97 MHz |
| Static RAM | 2 KB |
| Operating Temperature Range | -40 °C to +125 °C (depending on package) |
The MC68332 can run up to 20.97 MHz.
It includes a 2‑Kbyte static RAM module.
The device operates from –40 °C up to +125 °C, depending on the package.
