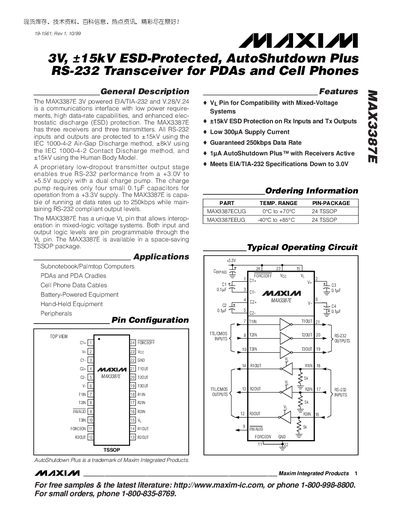

MAX3387E is a low-power, high data rate, enhanced ESD protected 3V powered EIA/TIA-232 and V.28/V.24 communications interface from MAXIM
The MAX3387E is a low‑power, 3 V‑operated EIA/TIA‑232 and V.28/V.24 communications interface. It offers three receivers and three transmitters, each protected to +15 kV ESD using IEC 1000‑4‑2 methods. The device is intended for sub‑notebook computers, PDAs, cell‑phone data cables, battery‑powered and hand‑held equipment.
Key features include a programmable VL pin for mixed‑voltage systems, AutoShutdown Plus circuitry that reduces supply current to 1 µA after 30 s of inactivity, and a space‑saving 24‑pin TSSOP package. The transceiver supports data rates up to 250 kbps while maintaining RS‑232 compliant output levels.
| ESD Protection (Air‑Gap) | +15 kV |
|---|---|
| ESD Protection (Contact) | +8 kV |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 24‑pin TSSOP |
VL can be connected to a logic supply between 1.8 V and VCC (3 V‑5.5 V).
