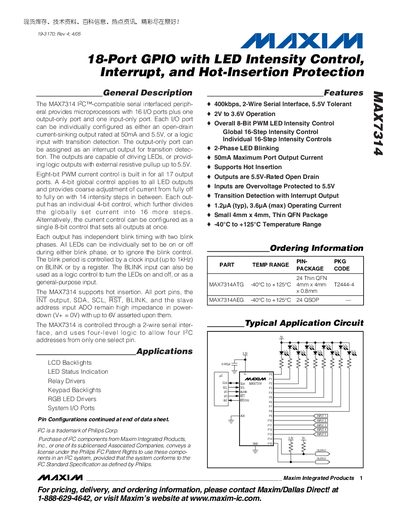

The MAX7314 is a 17-channel I/O expander chip produced by Texas Instruments with 8-bit PWM current control function and hot plug support.
The MAX7314 provides a serial‑interfaced 18‑port GPIO solution with per‑port LED intensity control, 2‑phase blinking, and an optional interrupt output. It operates over a 2 V to 3.6 V supply range and supports hot‑insertion, making it suitable for LCD backlights, status LEDs, keypad backlights and other system I/O applications.
The device includes an internal 32 kHz oscillator for PWM LED dimming, offering a global 16‑step intensity control plus 16‑step per‑port granularity. All ports are open‑drain, 5.5 V‑rated, and can sink up to 50 mA each, with a total ground current rating of 350 mA. Detailed electrical, timing and package specifications are provided for design integration.
| Supply Voltage (V+) | 2 V to 3.6 V |
|---|---|
| Maximum Port Output Current | 50 mA per port |
| Ground Current Rating | 350 mA total |
| Operating Temperature Range | -40 °C to +125 °C |
| Number of GPIO Ports | 18 ports (16 I/O + 1 output‑only + 1 input‑only) |
| PWM Intensity Control Steps | Global 16‑step, per‑port 16‑step (total 256 steps) |
| I²C Clock Frequency | 400 kHz |
The device operates from 2 V to 3.6 V on its V+ pin.
It provides 18 ports: 16 configurable I/O ports, one output‑only port, and one input‑only port.
Each output can sink up to 50 mA.
The device is rated for operation from –40 °C to +125 °C.
