The LM124/124A is a low power quad operational amplifier produced by Texas Instruments. It has the characteristics of high gain, internal frequency compensation and can be powered by a single power supply or split power supply. The product is widely used in transducer amplifiers, DC gain blocks and various conventional op amp circuits.
The LM124A/LM124QML family consists of four independent, high‑gain, internally frequency‑compensated operational amplifiers designed for single‑supply operation over a wide voltage range. They feature low supply current, ground‑referenced input common‑mode range, and are suitable for transducer amplifiers, DC gain blocks and other conventional op‑amp circuits.

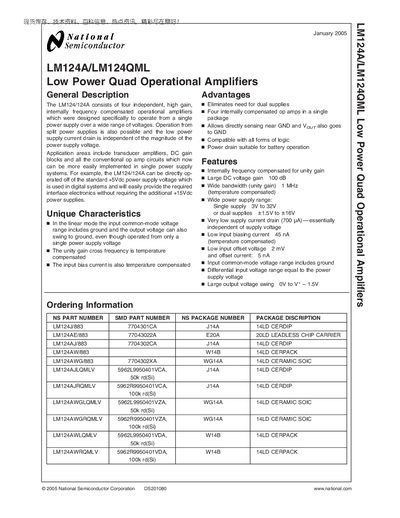

The document provides detailed electrical characteristics, absolute maximum ratings, connection diagrams, ordering information and physical dimensions, along with quality conformance and life‑support policy notes.
| Supply Voltage Range | Single supply 3 V to 32 V or dual supplies +1.5 V to +16 V |
|---|---|
| Power Supply Current (5 V) | 1.2 mA |
| Input Bias Current | 45 nA (temperature compensated) |
| Input Offset Voltage | 2 mV |
| Output Voltage Swing | OV to V‑ 1.5 V |
It operates from a single supply of 3 V to 32 V or from dual supplies of +1.5 V to +16 V.
The typical supply current at a 5 V supply is 1.2 mA.
The input bias current is 45 nA and is temperature compensated.
The input offset voltage is specified as 2 mV.
