BW-1201A is a 12 V drain valve with a temperature sensor. It prevents water from collecting in the system and automatically shuts off when the temperature reaches 55°C.

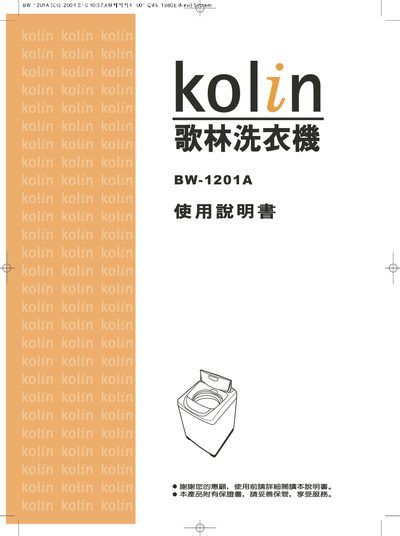

This manual covers essential safety precautions for the Kolin BW-1201A, including warnings against flammable liquids, proper handling of the power cord, and never inserting hands into the drum while the machine is operating. It also details installation requirements such as a flat, sturdy floor, proper water inlet and drain hose connections, and grounding instructions.
The guide explains how to prepare laundry, select appropriate cycles, and maintain the machine. Technical specifications such as power supply, consumption, dimensions, weight, and maximum load are listed, along with service contact information for repairs and support. This manual is written in Chinese.
| Power supply | AC110V / 60Hz |
|---|---|
| Power consumption | 550 W |
| Dimensions (W×H×D) | 630 mm × 1010 mm × 670 mm |
| Weight | 45 kg |
| Maximum washing load | 12 kg |
The machine can handle up to 12 kg of laundry per wash.
