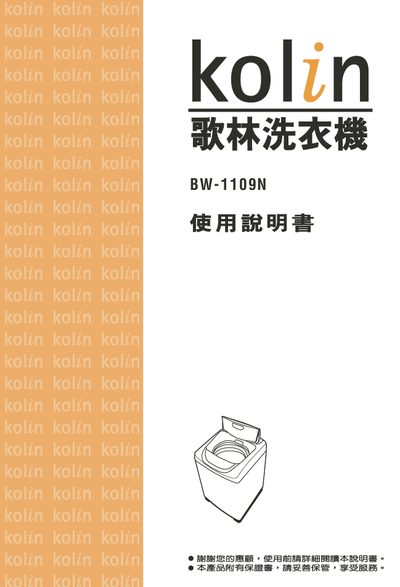

This manual covers the safe use and installation of the Kolin BW-1109N washing machine, including placement guidelines, water‑inlet and drain‑pipe connections, grounding, and the functions of the control panel. Detailed descriptions of each washing program—standard, quick, delicate, heavy‑duty, and more—are provided along with step‑by‑step operating procedures.
Additional sections address routine maintenance, simple troubleshooting of common issues such as power loss, water intake problems, and spin failures, and include the machine’s technical specifications and service contact information. This manual is written in Chinese.
| Power Supply | 110V ~ 60Hz |
|---|---|
| Power Consumption | 550W |
| Dimensions (W×H×D) | 630 mm × 1010 mm × 670 mm |
| Weight | 47 kg |
| Standard Water Consumption per Cycle | 250 L |
| Standard Water Use (High/Medium/Low/Short) | 97 L / 77 L / 62 L / 36 L |
| Water Pressure Range | 29.4 kPa – 784.5 kPa |
| Washing Mode | Double wash (bubble + agitation) |
Check that the power is on, the power switch is turned on, and that the water supply is connected correctly.
Ensure the water tap is open, the inlet hose is not frozen or blocked, and the filter at the inlet is clean; the machine will alert you after 20 minutes if water has not entered.
