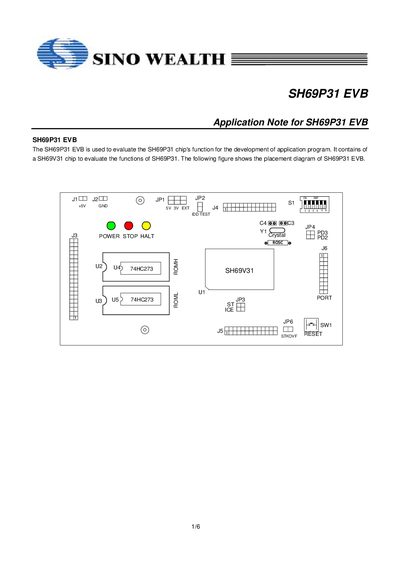

SH69P31 EVB is an evaluation board for the development of application programs to evaluate the functions of the SH69P31 chip. It contains an SH69V31 chip to evaluate the functions of SH69P31. This document provides detailed instructions for using SH69P31 EVB.
The SH69P31 EVB is an evaluation board used to develop and test applications for the SH69P31 chip. It supports two operation modes – ICE mode, where the board connects to an ICE motherboard, and stand‑alone mode, where the board runs independently with EPROMs.
The document provides detailed programming notices, jumper and switch settings, connector pin‑outs, LED indications, and usage tips for the ICE interface, helping developers correctly evaluate and debug their programs on the board.
