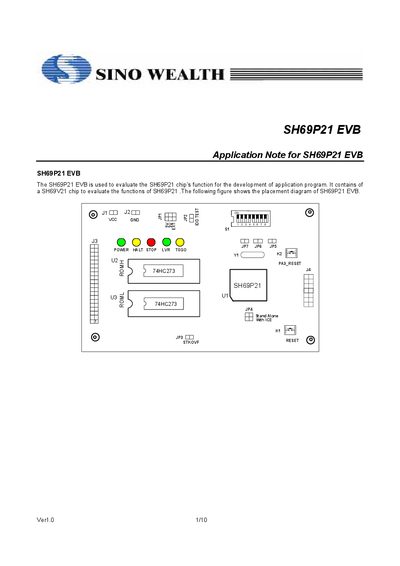

The SH69P21 EVB is an evaluation board used to evaluate the functions of the SH69P21 chip for the development of application programs. It contains a SH69V21 chip for evaluating the functions of the SH69P21.
The SH69P21 EVB is an evaluation board used to develop and test applications for the SH69P21 microcontroller. It can operate in two modes: ICE mode, where the board connects to a mother‑board emulator, and stand‑alone mode, where a Flash or EPROM holds the program.
The document details the board’s connector layout, required jumper settings for power and mode selection, LED indicators, and provides programming notes for using the Sino Wealth IDE66 environment, including handling of interrupts, timers, and I/O ports.
