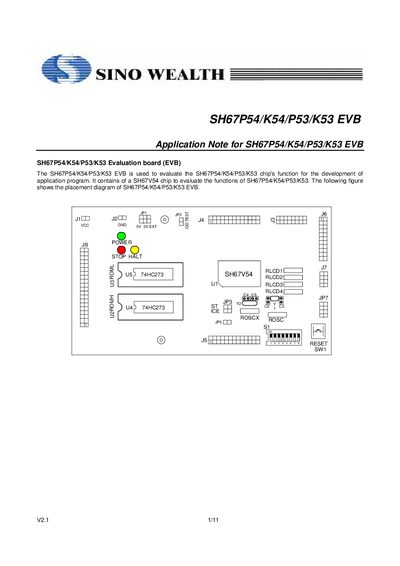

SH67P54/K54/P53/K53 EVB is an evaluation board used to evaluate the functions of SH67P54/K54/P53/K53 chips and used for application program development.
The SH67P54/K54/P53/K53 EVB is an evaluation board for the SH67P54/K54/P53/K53 micro‑controller family. It can be used in two configurations – ICE mode, where the board is connected to a Rice66 emulator, and stand‑alone mode, where a Flash or EPROM holds the program.
The document describes the board’s connectors, jumper settings, LED indicators, oscillator options, and detailed programming notes, including timer, I/O, LCD and PSG usage. Revision history and troubleshooting tips are also provided.
| Maximum current supplied to target | 100 mA |
|---|---|
| Low‑frequency oscillator options | 32 kHz crystal or 262 kHz RC |
| High‑frequency oscillator options | 400 kHz‑4 MHz ceramic or internal 4 MHz |
The board can run in ICE mode, where it is connected to a Rice66 emulator, or in stand‑alone mode, using a Flash or EPROM for the program.
The EVB can supply up to 100 mA to the target; higher currents require an external supply.
