Haier ES60H-HC(ME) is a large-capacity electric water heater with a capacity of 100L and a power of 4KW. The external dimensions are 370mm*200mm*305mm, which can meet the hot water needs of 4-5 people.

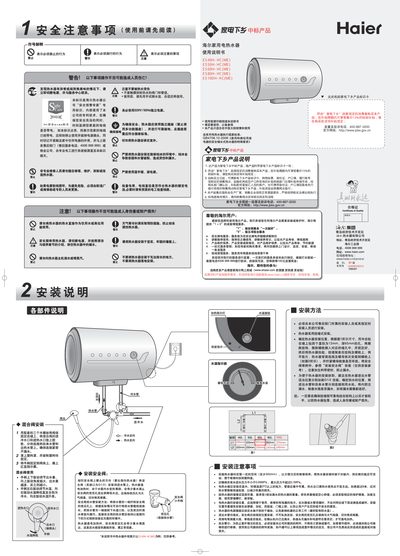

This manual provides safety warnings, installation steps, and operating instructions for Haier's ES40H‑HC(ME) to ES100H‑HC(ME) electric water heaters. It includes guidance on proper wiring, wall‑mounting, pipe connections, and the use of the built‑in safety valve.
The document also covers regular cleaning, maintenance procedures, technical specifications, warranty information, and answers to common questions such as pressure handling and temperature settings. This manual is written in Chinese.
| Capacity | 40 L, 50 L, 60 L, 80 L, 100 L |
|---|---|
| Water pressure range | 0.05 MPa – 0.8 MPa |
| Maximum temperature setting | 75 °C |
| Dimensions (L1 × L2) | 1200 mm × 200 mm (40 L), 1302 mm × 200 mm (50 L), 1408 mm × 240 mm (60 L), 1500 mm × 240 mm (80 L), 1600 mm × 240 mm (100 L) |
The temperature can be set up to 75 °C.
No, the heater must not be installed where it can freeze, as freezing can cause the tank and pipes to rupture.
