Solar water heater installation manual, mainly introduces the installation location selection of water heater, bracket installation, water tank installation, vacuum tube installation, and provides product features, technical parameters, packing list and other information.

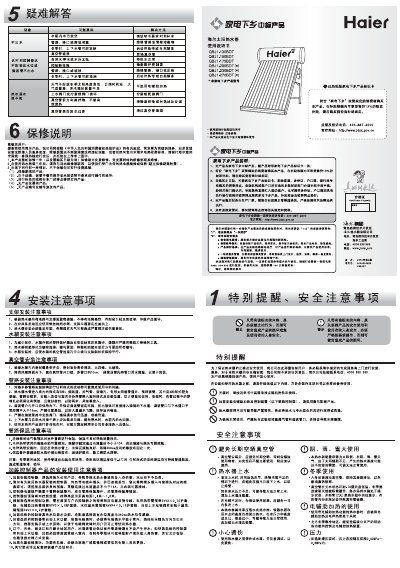

This manual provides step‑by‑step instructions for installing and operating the Haier QBJ1‑175BDT solar water heater. It includes guidance on selecting an appropriate installation site, assembling the bracket, mounting the tank, installing vacuum tubes, and connecting the auxiliary electric heater.
Safety notes emphasize that installation must be performed by qualified personnel and that the system should be placed within the building’s lightning‑protection zone, facing the recommended south‑east to south‑west direction, with no obstructions in front of the unit. This manual is written in Chinese.
| Tank inner material | SUS304 stainless steel |
|---|---|
| Insulation material | Polyurethane foam |
| Electric auxiliary heating power | 1500 W |
| Water‑level sensor height | 360 mm |
| Vacuum tube dimensions | φ58 mm × 1800 mm |
The auxiliary electric heater is rated at 1500 W.
The tank inner liner is made of SUS304 stainless steel.
