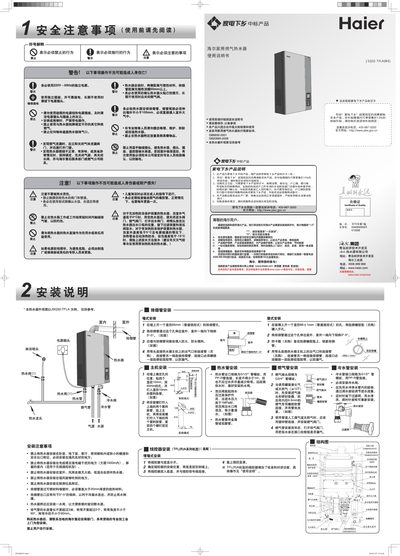

This is a user manual for a Haier domestic gas water heater. It introduces the use method and installation precautions of the product.
The manual begins with safety precautions, warning symbols, and required protective measures for installing and using Haier gas water heaters. It emphasizes proper grounding, correct power connections, and the prohibition of unsafe actions such as covering the exhaust or using damaged cords.
Subsequent sections detail the installation process (wall‑mounting, pipe connections, venting), operation controls, temperature and humidity settings, and troubleshooting codes. Technical data, warranty terms, and a FAQ section help users maintain the heater and resolve common issues. This manual is written in Chinese.
| Model | JSQ32-TFLA (ME) |
|---|---|
| Fuel Type | Natural gas |
| Rated Heat Output | 32 kW |
| Water Pressure Range | 0.02–1.0 MPa |
| Flow Rate | 3.0–5.0 L/min |
| Dimensions (L×W×H) | 570 mm × 375 mm × 145 mm |
| Net Weight | 15.5 kg |
| Rated Voltage | AC 220 V |
| Power Consumption | 45 W |
| Energy Efficiency Class | Class 2 |
The rated heat output is 32 kW.
The heater operates with water pressure between 0.02 MPa and 1.0 MPa.
