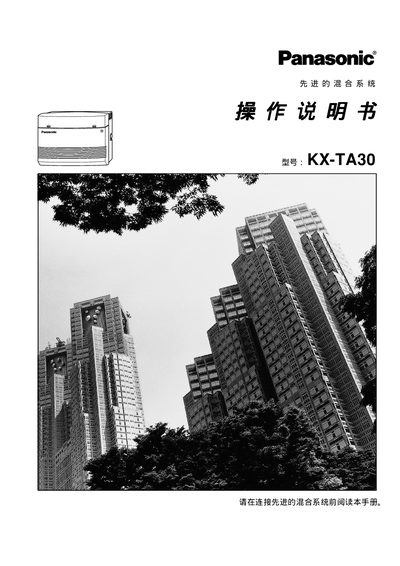

This document describes the features and operation instructions of the Panasonic KX-TA30 Advanced Hybrid System and its associated devices. It includes functional phones with LCD, DSS consoles, door phones/door station cards, etc. It also provides installation and usage precautions.
This manual covers the safe installation, setup, and use of the Panasonic KX-TA30 telephone system. It includes safety precautions such as preventing accidental activation, avoiding high‑temperature and moisture exposure, and the requirement that only qualified personnel perform installation and service.
The document details operation procedures, function settings, signal and LED indicator lists, fault diagnosis, and maintenance steps. It also lists compatible models and extensions, providing reference tables for quick troubleshooting. This manual is written in Chinese.
| Maximum operating temperature | 40 °C |
|---|---|
| Maximum internal extensions | 8 |
| Maximum external lines | 3 |
Install the device in a secure location and follow the "prevent accidental activation" instructions.
The device should not be used in environments above 40 °C.
Only qualified personnel may install and service the device.
Disconnect the power, remove the unit, and send it to an authorized service center.
