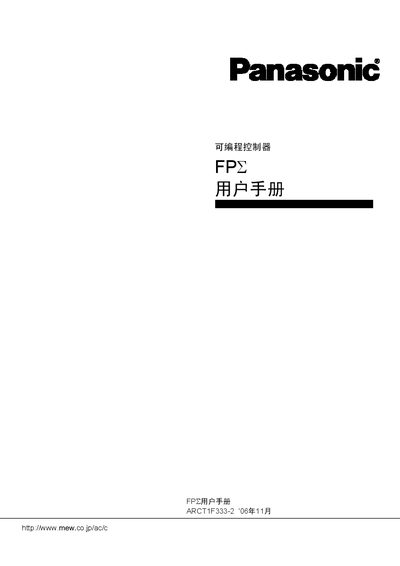

This manual describes the hardware configuration and settings, wiring methods, I/O allocation and maintenance of the FPΣ programmable controller.
The FPz programmable controller manual begins with safety precautions, warning against use in flammable atmospheres, handling of lithium batteries, and emphasizes proper grounding, emergency stop circuits, and avoiding contact with live terminals. It also outlines copyright and trademark information for Panasonic.
Subsequent sections describe the hardware composition, input and output specifications, terminal assignment diagrams, analog potentiometer and thermistor inputs, calendar clock functions, expansion unit types and installation, wiring guidelines for power and I/O, backup battery installation, and maintenance procedures. This manual is written in Chinese.
| Control unit type (NPN output) | C32 |
|---|---|
| Control unit type (PNP output) | C28 |
| Control unit type (Relay output) | C24 |
| Thermistor input availability | Only for models ending with TM |
| Calendar clock function | Provides date and time settings |
Do not operate in flammable gas atmospheres, do not place lithium batteries in fire, avoid touching terminals while powered, and ensure emergency‑stop and interlock circuits are installed.
The FPz control unit is offered in three output types: C32 NPN transistor output, C28 PNP transistor output, and C24 relay output.
Install the backup battery according to the procedures in section 5.7, set the system registers as described, and replace the battery according to the recommended replacement interval.
