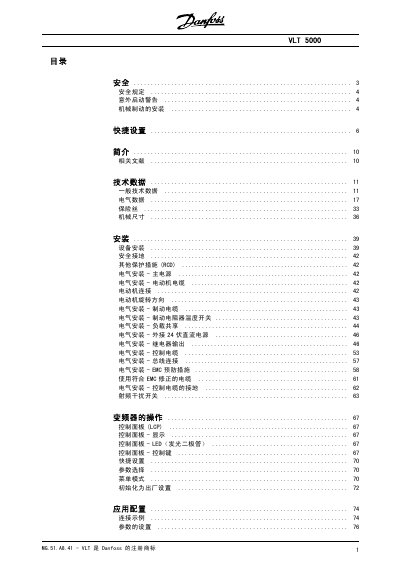

This manual covers the complete lifecycle of the VLT 5000 variable frequency drive, starting with safety regulations, mechanical brake installation, and quick‑setup procedures. Detailed sections describe electrical installation, control panel functions, programming menus, and parameter configuration.
Technical data, torque characteristics, environmental limits and related literature are listed in the later chapters, giving engineers the information needed for design, commissioning and maintenance of the drive. This manual is written in Chinese.
| Input voltage (L1‑L3) 200‑240 V | ±0 % |
|---|---|
| Input voltage (L1‑L3) 380‑500 V | ±10 % |
| Output frequency range | 0‑132 Hz |
| Motor rated voltage | 200‑240 V |
| Power factor at rated load | 0.90 (cos φ) |
The main power must be disconnected, the power must be verified as off, and you should wait a short time before removing the motor and power plugs.
Press the STOP/RESET key after ensuring the main power is disconnected; this clears the fault condition.
Press the QUICK MENU button on the control panel, then use the up/down arrows to select parameters and the CHANGE DATA button to edit values.
