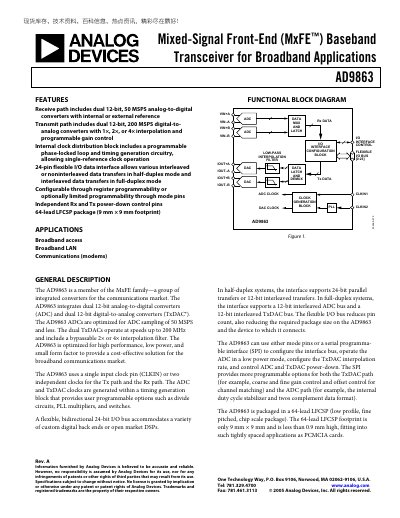

AD9863 Rev. A is a mixed-signal front-end (MxFE™) baseband transceiver for broadband applications produced by Analog Devices.
The AD9863 belongs to Analog Devices' MxFE family and provides a high‑performance, low‑power solution for broadband communications. It integrates dual 12‑bit analog‑to‑digital converters for the receive path and dual 12‑bit digital‑to‑analog converters for the transmit path, supporting various interpolation rates and programmable gain.
The device is supplied with 3.3 V analog and digital rails, operates from –40 °C to +85 °C, and is offered in a compact 64‑lead LFCSP (9 mm × 9 mm) package. Detailed specifications cover ADC/DAC performance, power consumption, timing, pin functions, and absolute maximum ratings.
| Maximum AVDD Rating | 3.9 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
