AD9864 is a low-frequency signal acquisition chip launched by ADI. It uses a 48-lead LFCSP package and works at a voltage of 2.7V to 3.6V. It integrates LO and sampling clock generators and supports 16-bit or 24-bit serial digital output.

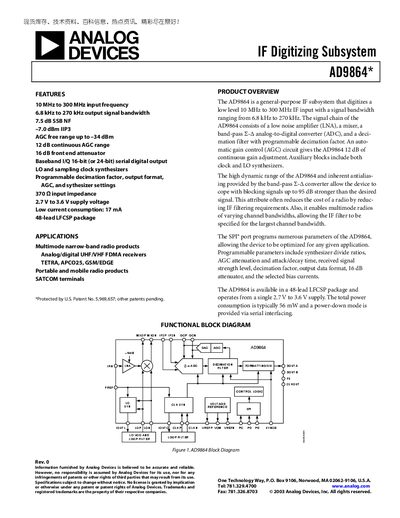

The AD9864 from Analog Devices digitizes a low‑level IF signal ranging from 10 MHz to 300 MHz with a selectable bandwidth of 6.8 kHz to 270 kHz. It integrates a low‑noise amplifier, mixer, band‑pass Z‑A ADC, and programmable decimation filter, plus on‑chip LO and clock synthesizers.
The device operates from a single 2.7 V‑3.6 V supply, consumes about 17 mA in normal mode, and provides 16‑ or 24‑bit I/Q data via a synchronous serial interface. It is offered in a 48‑lead LFCSP package and includes programmable gain control and automatic gain control for flexible radio applications.
| Input Frequency Range | 10 MHz to 300 MHz |
|---|---|
| Output Bandwidth | 6.8 kHz to 270 kHz |
| Supply Voltage | 2.7 V to 3.6 V |
| Current Consumption (operating) | 17 mA |
| Decimation Factor | 48 to 960 |
| Digital Output Resolution | 16‑ to 24‑bit |
The AD9864 accepts input frequencies from 10 MHz up to 300 MHz.
It operates from a single supply of 2.7 V to 3.6 V.
The programmable decimation factor can be set between 48 and 960.
The device can output either 16‑bit or 24‑bit I/Q data.
