HRMS-2112D Intelligent Wireless Controller is one of the products in Honeywell Smart Lighting series, which can be used in conjunction with HRMS-2191 Wireless Remote Controller. It is an ideal choice for modern home automation. The controller is powered by dual-line and has both manual control and remote control functions. It can add lights and remotely control the lights' on/off and scene switching through the remote controller.

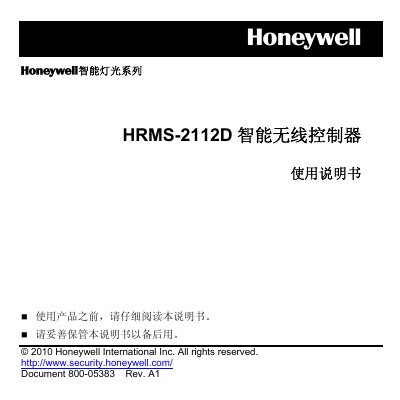

This manual describes the HRMS-2112D smart wireless controller, a member of Honeywell's intelligent lighting series. It explains the required dual‑wire (neutral and line) power connection, mounting procedures, and safety precautions for proper installation in a home environment.
The guide also covers how to program the controller with the HRMS-2191 remote, add or delete lighting circuits, set up scene keys, and the technical parameters such as voltage, load capacity, and operating temperature. It includes a warranty card and regulatory information for the product. This manual is written in Chinese.
| Working Voltage | 220~240VAC 50~60Hz |
|---|---|
| Maximum Load Power per Channel | 1000W per channel |
| Minimum Load Power | No minimum |
| Operating Temperature | -10℃~+55℃ |
| Operating Humidity | ≤90% RH |
| Receiver Sensitivity | -100 dBm |
| Supported Load Types | Incandescent, halogen, CFL, LED |
Long‑press the controller’s first button for about 5 seconds until it beeps and the indicator LED flashes.
Up to nine lighting circuits can be added, corresponding to remote digital keys 1‑9.
The controller operates on 220 to 240 VAC at 50‑60 Hz.
